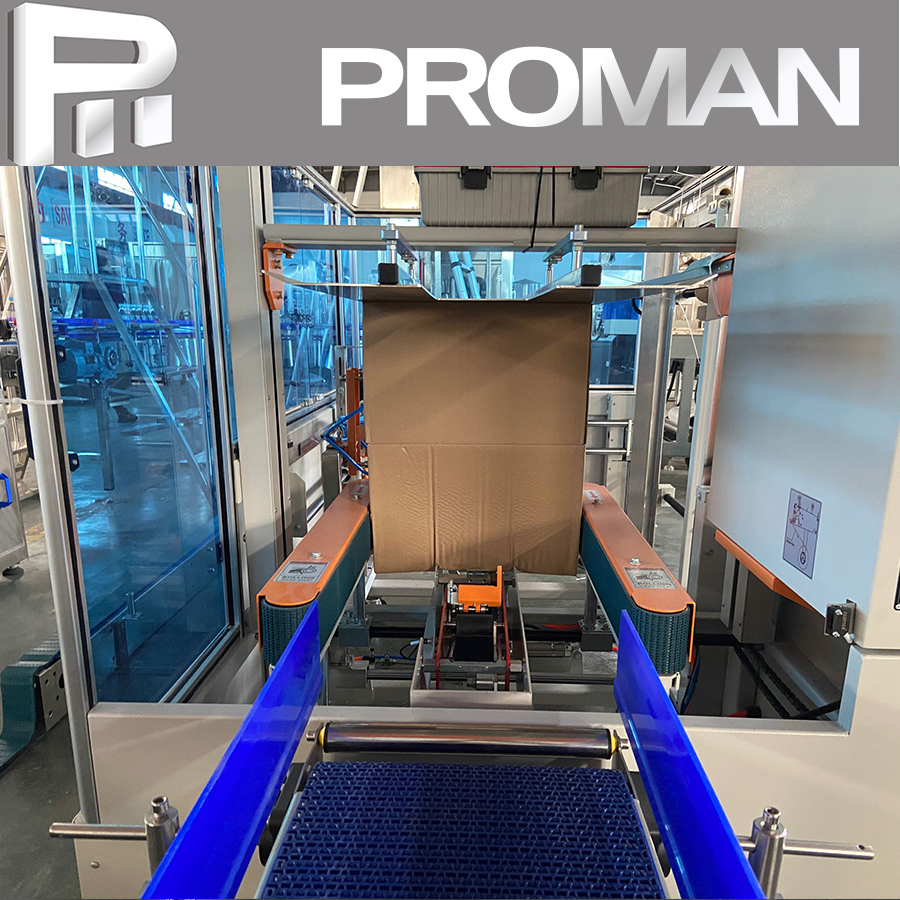

Auto Carton Packing Machine
Auto Carton Packing Machine
- Model: WD-50
- Brand: Proman
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
Capacity: 2-5bag/min
Sealing time: 0.5-1.5s 0-0.5s
Conveyor loading: 30kgs
Film thickness: 0.04-0.12mm
Max. Packing dimension: L W H 400*270*350MM
Machine dimension: 1020*830*1980mm
1. Packing terms:
(1)350/500/550/600ML large package: 4*6, 4*5
Small package: 3*4, 3*5
(2)1L/1.5L/2L/2.5L large package:3*3,3*4
Small Package:2*2,2*3
2. For the pop can packing ,we advise packing with pallet,it will be steady.
3. Packing speed:8-15 bundles/minute
4. Satisfy the speed of the liquid filling machine.
5. Material of packing:the wideth of PE heat shrink film
(200-600mm),thickness(0.08-0.12mm)
Detailed Images
Technical Data
|
Model |
WD-50 |
|
Capacity(500ML) |
4000BPH |
|
Voltage |
380/220 |
|
Suitable Bottle |
PET Bottle ,Plastic Bottle |
|
Diameter of bottle |
Diameter: 55-110 MM |
|
Height Of Bottle |
150-310MM |
|
Suitable Cap |
Plastic Screw Cap |
|
Weight |
800kg |
|
Main Motor Power |
16kw |
Packaging & Shipping
Wooden packaging and PE Film packed
After-sales Service
1. Machine Production In Time
2. 7 days one week online for customer service
3. 24 Hours spare parts sent by DHL
4. Engineer Provided to customer factory to installation and training.
Company Information
Zhangjiagang PROMAN Machine Co., Ltd. is a professional manufacturer of beverage machinery in China Since 1998,For almost 20years machine experience It is located in Zhangjiagang City very closed to Shanghai with beautiful scenery and convenient transportation.
Workshop Photo
Proman Machine Over View
Filling Machine Part WorkShop
Bottle Blow Molding Machine Workshop
Packaging Machine Workshop
