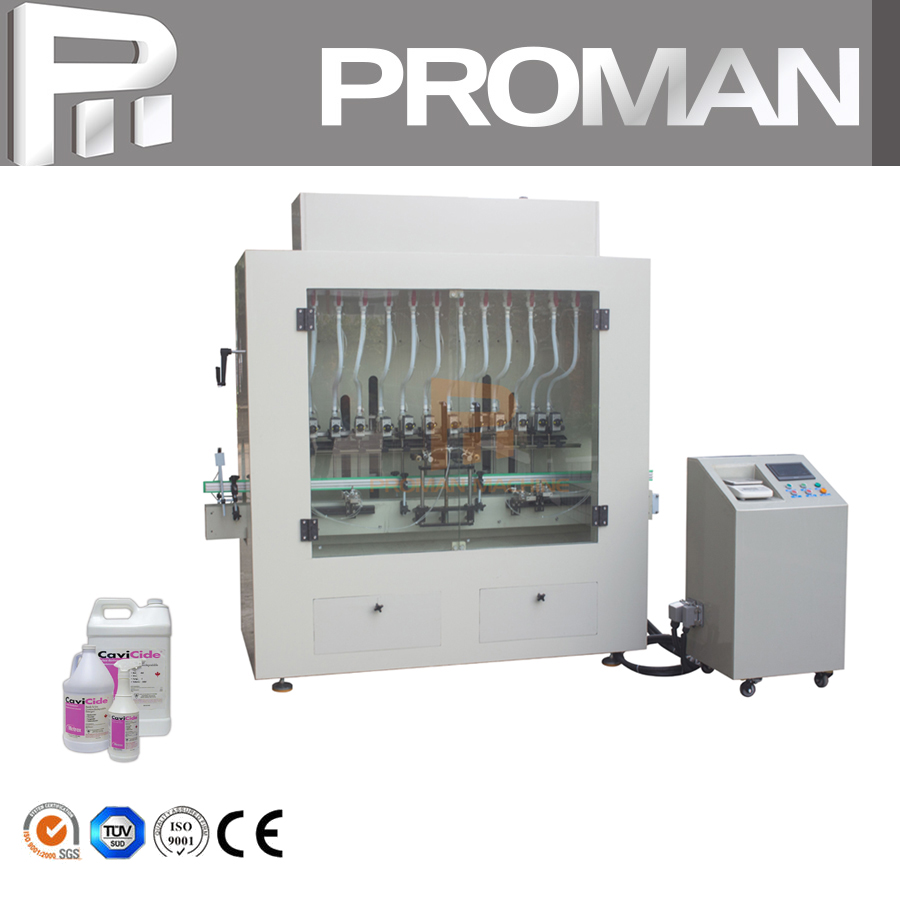

5-30L Weight Type Liquid FIlling Machine
This liquid filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, and equipped with photo electricity instruction and pneumatic action.
It adopts servo control system, ensure the pistons can always reach constant position. When close to target filling capacity, the filling speed will automatically slow down, which can prevent the liquid spill out bottle mouth and cause pollution.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
It is widely used in the below industry:
Plant oil:Lubricant oil, engine oil, gear oil, etc.
Daily Chemical products:Liquid soap,toilet cleaner, laundry detergent, kitchen detergent, fabric softener, hand sanitizer, alcohol gel, shampoo, hair lotion, body soap, etc.
Food industry:Tomato paste, chocolate butter, honey, edible cooking oil, mayonnaise, ketchup, jam, yogurt, etc.
Cosmetic:toner, lotion, cream, body milk, etc.
Our filling machine is easy to adjust, when you want to change the filling bottle size, just need to adjust the lifting rod, change the space between the filling nozzles and adjust the parameters on the touch screen.
Plant oil:Lubricant oil, engine oil, gear oil, etc.
Daily Chemical products:Liquid soap,toilet cleaner, laundry detergent, kitchen detergent, fabric softener, hand sanitizer, alcohol gel, shampoo, hair lotion, body soap, etc.
Food industry:Tomato paste, chocolate butter, honey, edible cooking oil, mayonnaise, ketchup, jam, yogurt, etc.
Cosmetic:toner, lotion, cream, body milk, etc.
Our filling machine is easy to adjust, when you want to change the filling bottle size, just need to adjust the lifting rod, change the space between the filling nozzles and adjust the parameters on the touch screen.
Suitable for material: daily chemical viscosity materials.
1.Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position
2. Variable speed filling: in filling process, when close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution
3. Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment Adopt servo motor to descend
4. Selecting the international famous brand electrical components configuration. Mitsubishi Japan PLC computer, omron photoelectric, Taiwan is produced touch screen, ensure the quality of its outstanding with long-term performance.
Technical Data
Technical parameters
|
Model |
WJ-01 |
WJ-02 |
WJ-03 |
WJ-04 |
WJ-05 |
WJ-06 |
WJ-07 |
|
Filling Head(PC) |
2 |
4 |
6 |
8 |
10 |
12 |
14 |
|
Suitable volume(L) |
0.5-6 |
0.5-6 |
0.5-6 |
0.5-6 |
0.5-6 |
0.5-6 |
0.5-6 |
|
Productivity (bph) |
350-500 |
700-1000 |
1000-1500 |
1500-2200 |
1800-2500 |
2000-3000 |
3000-4000 |
|
Work Pressure (MPa) |
0.6-0.7 |
0.6-0.7 |
0.6-0.7 |
0.6-0.7 |
0.6-0.7 |
0.6-0.7 |
0.6-0.7 |
|
Power consumption(KW) |
1.0 |
1.1 |
1.5 |
1.5 |
1.5 |
2.0 |
2.0 |
Electrical components
|
|
ITEM |
SUPPLIER |
Brand |
|
1 |
Touch screen |
Taiwan |
WEINVEIW |
|
2 |
PLC |
Japan |
Mitsubishi |
|
3 |
Photo sensor for bottles |
Japan |
OPTEX |
|
4 |
solenoid valve |
Taiwan |
SHAKO |
|
5 |
Level button |
Mexico |
JOHNSON CONTROLS |
|
6 |
angle seat Valve |
Jointed |
BURKERT |
|
7 |
Diving cylinder |
Taiwan |
AIRTAC |
|
8 |
Power button |
France |
Schneider |
|
9 |
Button |
France |
Schneider |
|
10 |
frequency converter |
France |
Schneider |
|
11 |
Magnetic switch |
Taiwan |
AIRTAC |
|
12 |
oil-water separator |
Taiwan |
SHAKO |
|
13 |
Speed reducer |
China |
Jiao xing |
|
14 |
Relay |
Japan |
Omron |
|
15 |
Servo motor |
Japan |
Panasonic |
Electrical components of our automatic viscous liquid filling machine
|
1 |
Servo motor |
Panasonic |
Japan |
|
2 |
Touch Screen |
WEINVEIW |
Japan |
|
3 |
PLC |
Mitsubishi |
Japan |
|
4 |
Cylinder |
AIRTAC |
Taiwan |
|
5 |
Solenoid Valve |
SHAKO |
Taiwan |
|
6 |
Button |
Schneider |
France |
|
7 |
Relay |
Schneider |
France |
|
8 |
Sensor |
Sick |
Germany |
